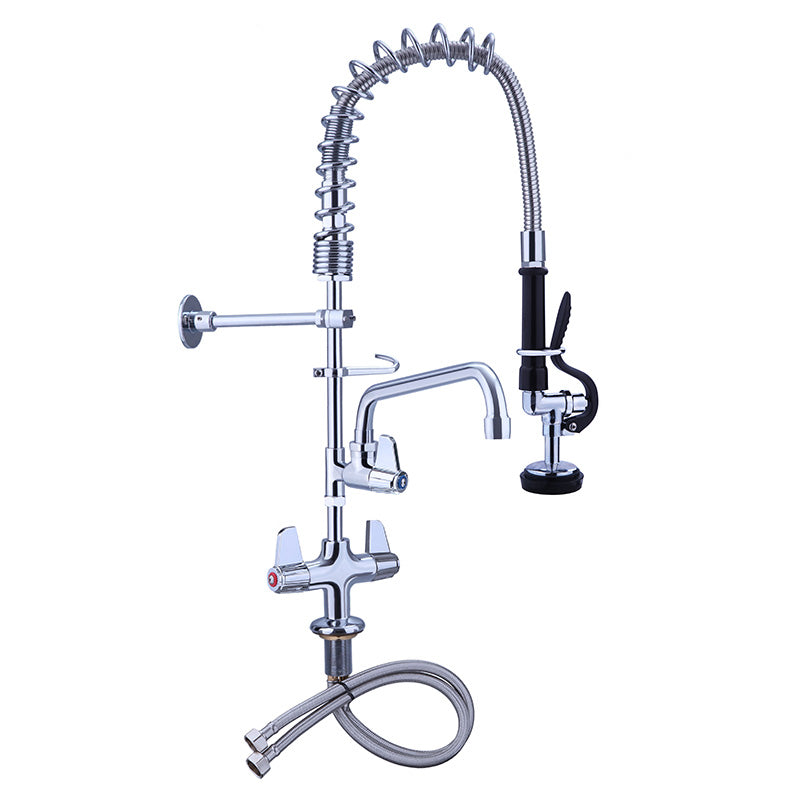

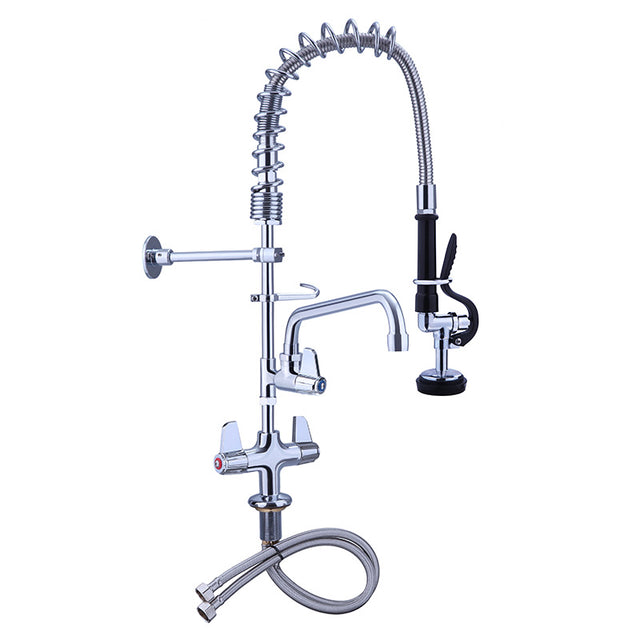

Compact Commercial Mono Pre-Rinse Spray Arm with 8" Bowl Filler – 630mm

A compact, heavy-duty commercial mono pre-rinse spray arm with integrated 8" bowl filler, designed for professional kitchens where space is limited but reliable rinsing performance is essential.

With an overall height of just 630mm, this mini pre-rinse unit is ideal for commercial catering sinks where a standard full-height spray arm may be too tall or where there is limited clearance above the sink.

The spring-supported flexible spray hose provides excellent manoeuvrability, while the hand-operated trigger spray head delivers powerful, targeted rinsing for plates, cookware, trays, utensils and other catering equipment before washing.

For added versatility, the unit incorporates a separate 8" (203mm) swivel bowl filler spout, allowing sinks, pots and containers to be filled quickly without using the spray head.

The mono inlet design requires only a single mounting hole, making it particularly suitable for commercial sinks with a mono tap configuration. Flexible hot and cold inlet hoses allow connection beneath the sink, while the single mixer control provides convenient adjustment of water temperature and flow.

An adjustable wall support bracket provides additional stability during regular use, making this a practical, space-saving pre-rinse solution for restaurants, cafés, pubs, takeaways and other busy commercial kitchens.

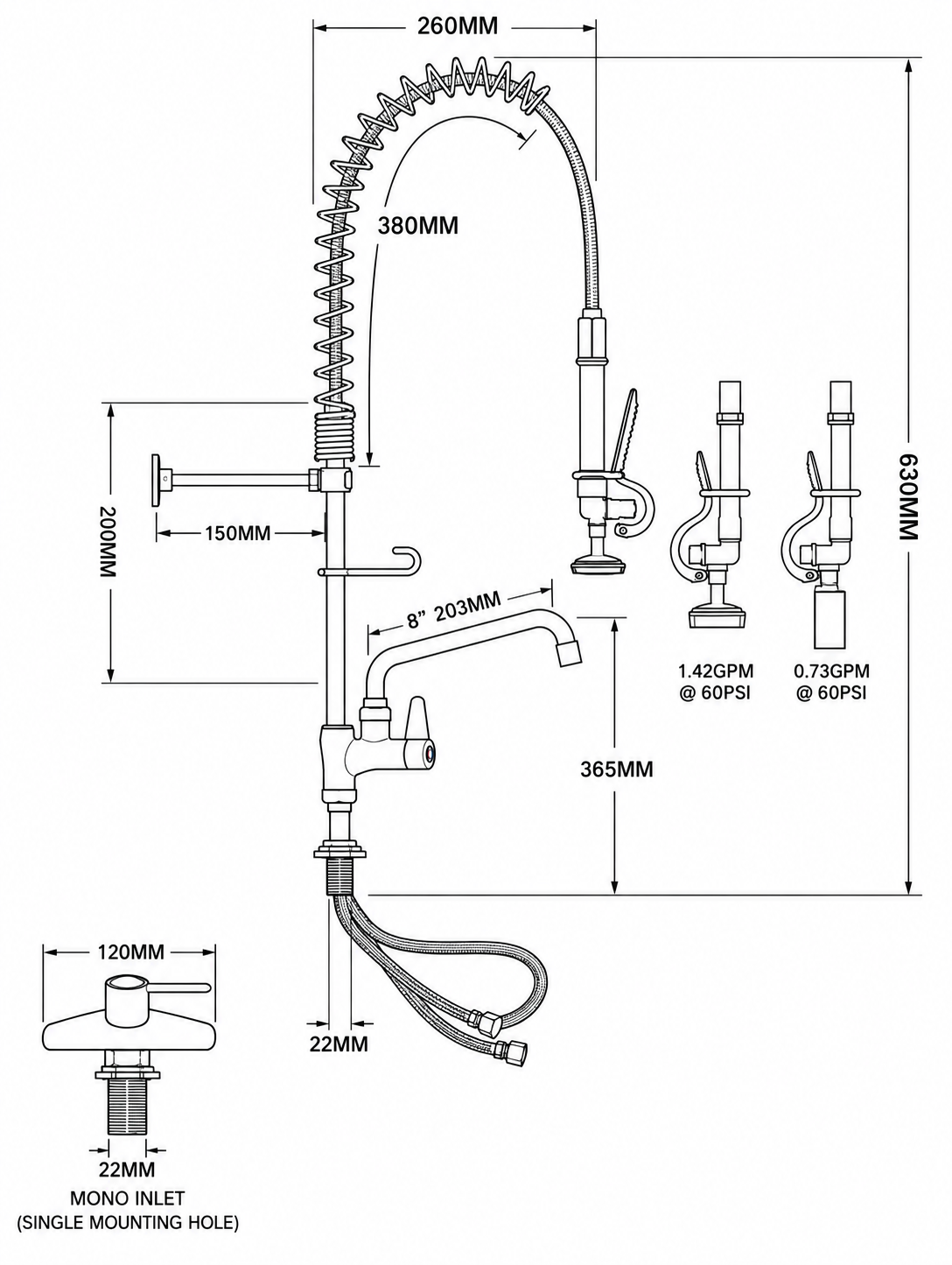

Key Features & Specification

• Compact commercial mono pre-rinse spray arm
• 630mm overall height
• Mono / single-hole mounting
• Separate 8" (203mm) bowl filler
• Swivel bowl filler spout
• 380mm spring-supported flexible spray hose
• Approx. 260mm spray arm reach
• Hand-operated trigger spray head
• 200mm lower riser section
• 150mm wall support bracket
• Approx. 365mm bowl filler height
• 22mm mounting connection
• Flexible hot and cold inlet hoses
• Spray valve flow rate: 1.42 GPM @ 60 PSI
• Bowl filler flow rate: 0.73 GPM @ 60 PSI
• Heavy-duty construction for commercial use
• Ideal for professional catering sinks and washing-up areas
• Free Delivery
• 12 Months Warranty
